High Performance 6mmΒ² Solar PV Cable 10AWG β Red and Black
Application
Solar cables are used for interconnection wiring in both grounded and ungrounded photovoltaic (PV) power systems.
Cable Design

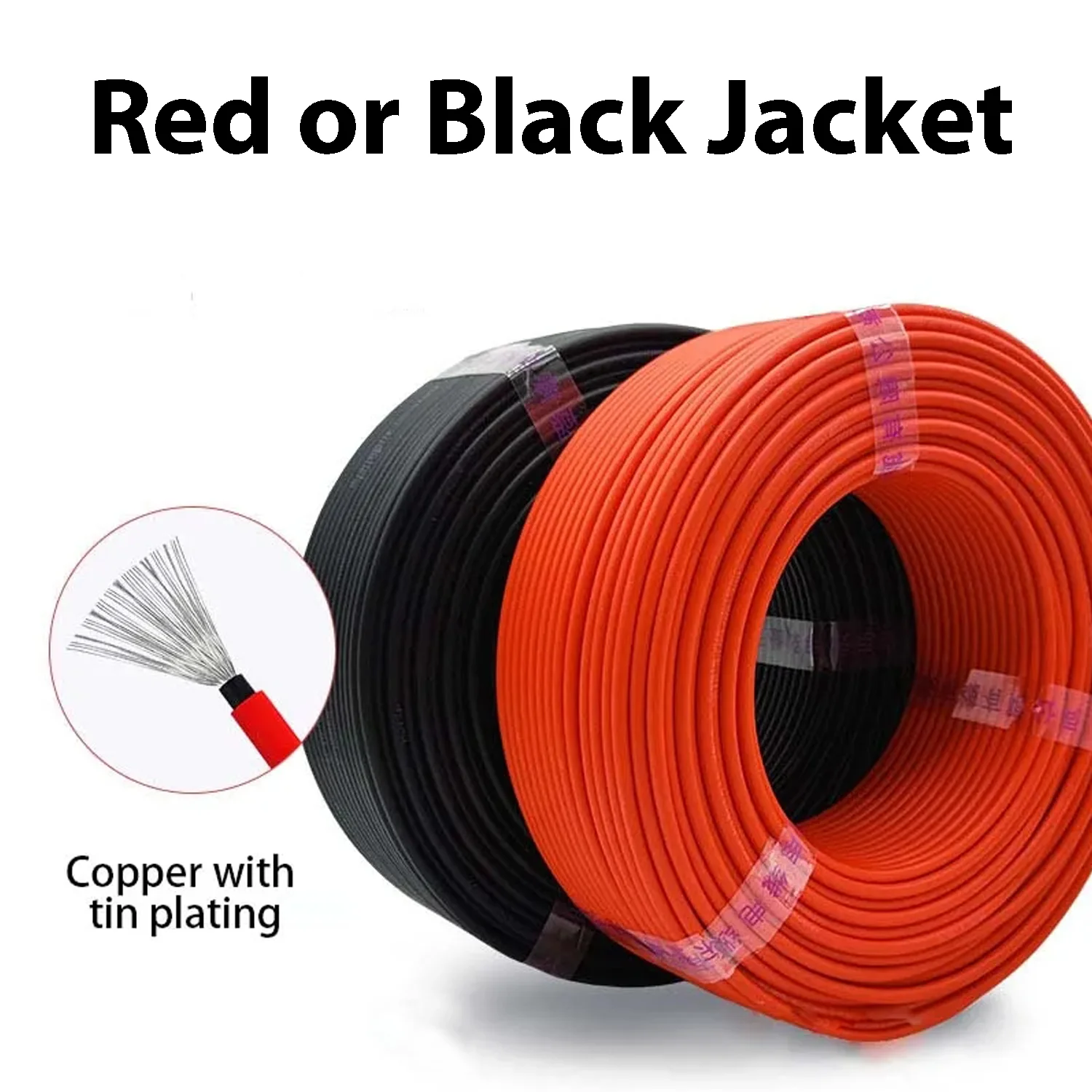

- Conductor: Fine wire strands of tinned copper, in accordance with IEC 60228, Class 5

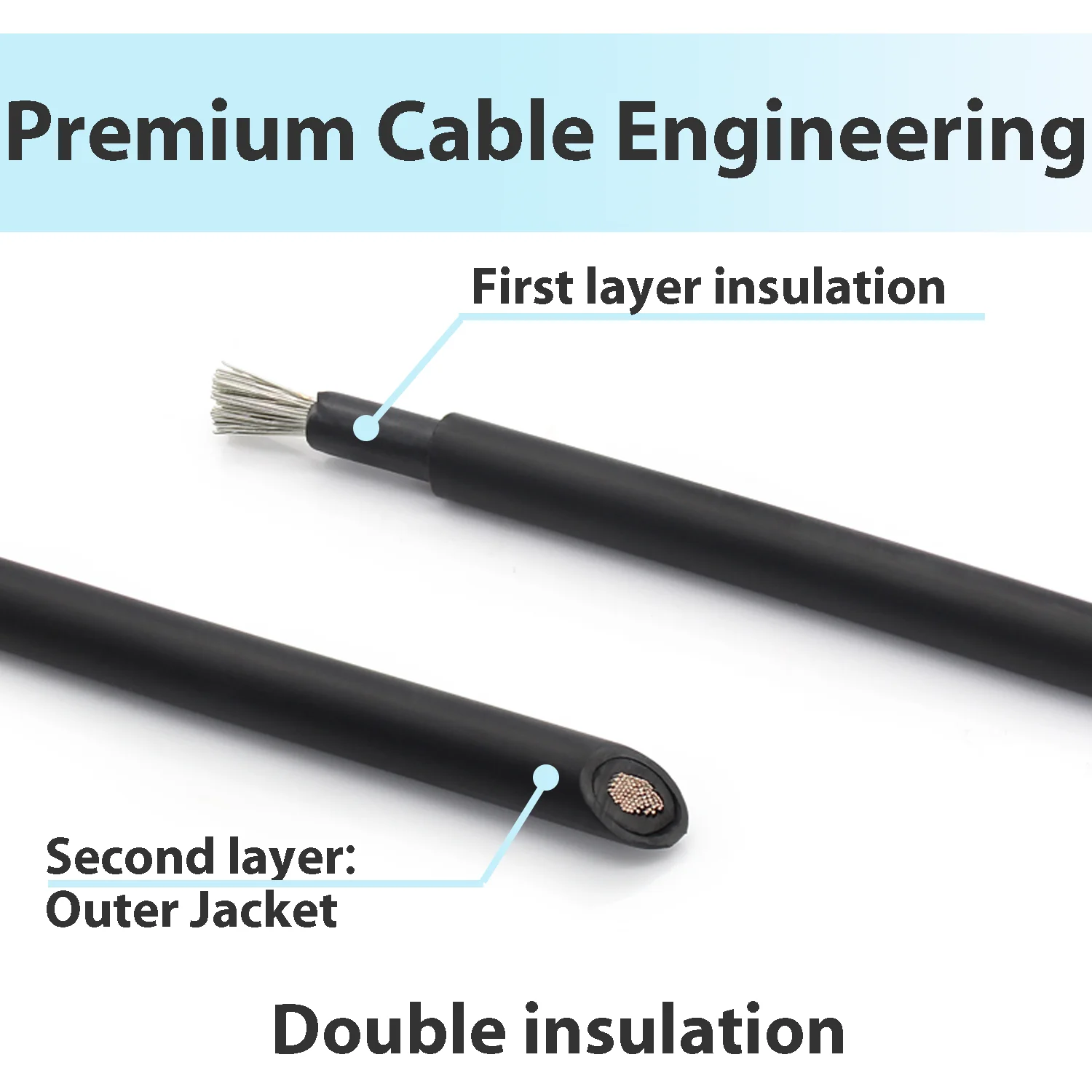

- Insulation: Halogen-free PE, electron beam cross-linked, color: Black
- Outer Jacket: Halogen-free, flame retardant PE; electron beam cross-linked; resistant to water and UV radiation; jacket color: Black or Red
Temperature Range

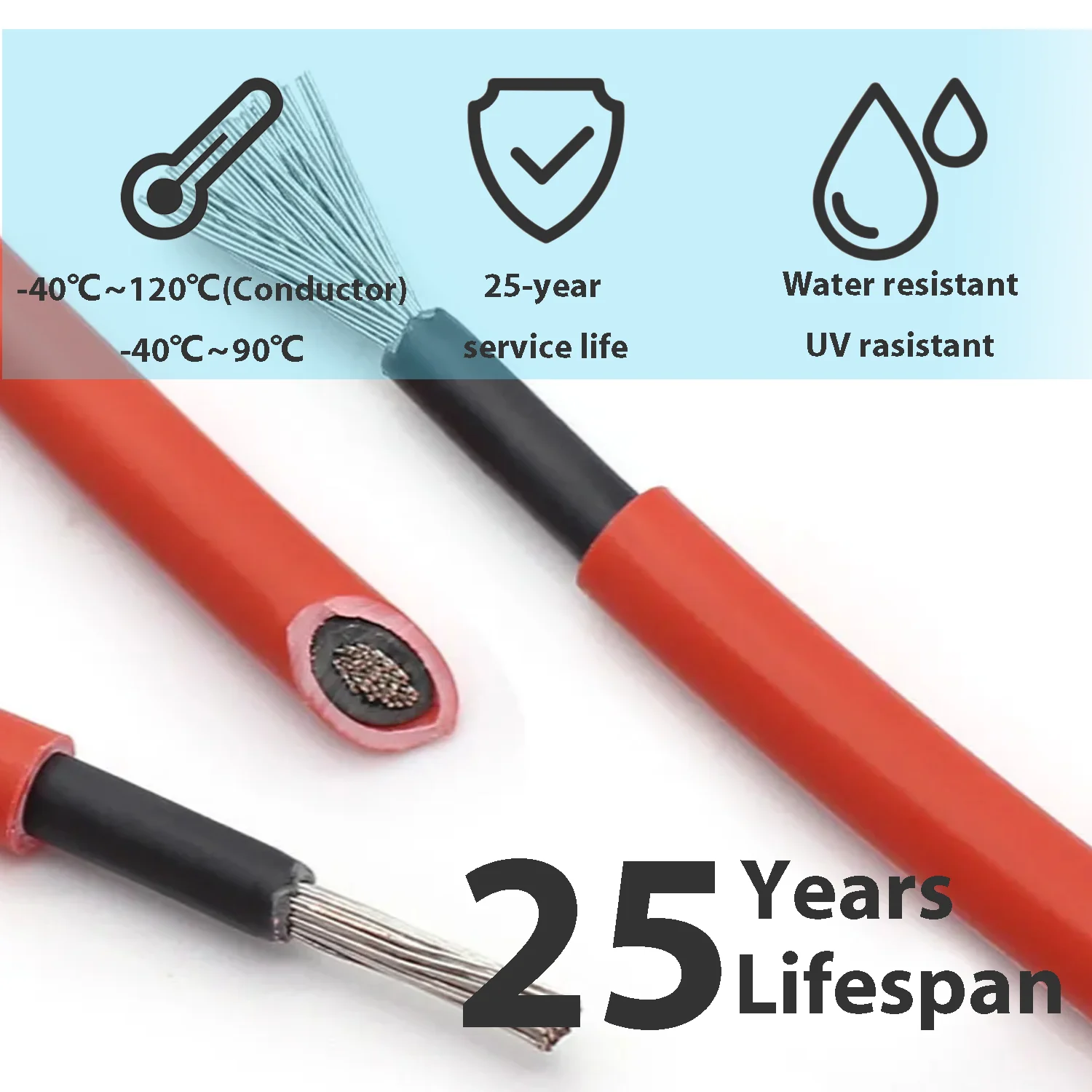

- Maximum conductor temperature: -40Β°C ~ 120Β°C
- Operating temperature range: -40Β°C ~ 90Β°C (minimum 25-year lifespan)
Electrical Characteristics
- Nominal voltage Uβ/U: AC 600/1000V, DC 900/1500V
- Maximum DC voltage: 1800V (conductor-to-conductor, non-earthed system, circuit not under load)
- AC test voltage: 6.5KV
- Minimum surface resistance of sheath: 10βΉ Ξ©
- Minimum bending radius: 5 Γ cable diameter
- Other tests: According to EN 50395
Mechanical Characteristics
- Bending radius: 5 Γ cable diameter
- Tensile strength and elongation: According to EN 60811-1-1
- Cold bending: According to EN 60811-1-4
- Thermal endurance: According to EN 60216-2
Environmental Characteristics
- Halogen-free: According to TΓV 2PfG 1169/08.2007 Annex B
- Ozone resistance: According to EN 50396
- UV resistance: According to HD 605/A1
- Flame characteristics: According to IEC 60332-1
Product Specifications
| Size (mmΒ²) | Conductor Dia. (N/mm) | Insulation Dia. (mm) | Core Color | Nominal Jacket Dia. (mm) | Rated Current at 60Β°C (A) | Jacket Color |
|---|---|---|---|---|---|---|
| 2.5 | 50/0.25 | 3.65 | Black | 5.25 | 41 | Black |
| 2.5 | 50/0.25 | 3.65 | Black | 5.25 | 41 | Red |
| 4.0 | 56/0.30 | 4.20 | Black | 6.05 | 55 | Black |
| 4.0 | 56/0.30 | 4.20 | Black | 6.05 | 55 | Red |
| 6.0 | 84/0.30 | 4.90 | Black | 6.50 | 70 | Black |
| 6.0 | 84/0.30 | 4.90 | Black | 6.50 | 70 | Red |
